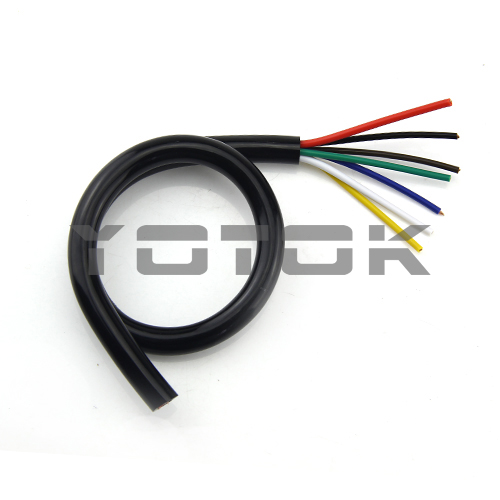

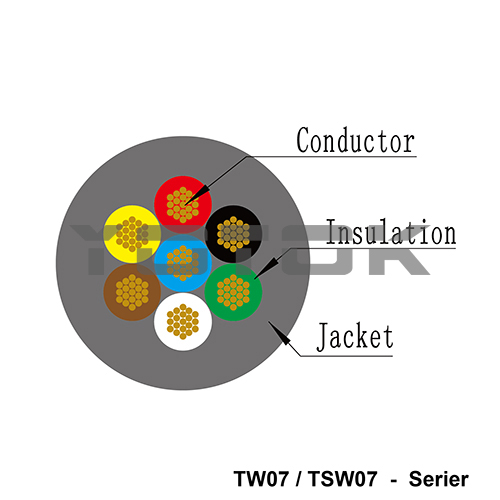

TSW07:7 core connecting cables RVP07-Series（TPU Jacket）
100%OFC Conductor TPU Jacket
-45℃~105℃
| Model | Specification | OD | Weight |
| mm | g/m | ||
| TSW0711 | 7*0.50mm²+TPU | 8 | 118.29 |
| TSW0712 | 7*0.75mm²+TPU | 8.5 | 141.44 |
| TSW0713 | 7*1.00mm²+TPU | 9.5 | 183.91 |
| TSW0714 | 7*1.50mm²+TPU | 10.5 | 242.03 |
| TSW0715 | 7*2.50mm²+TPU | 12.8 | 385.89 |
| TSW0721 | 6*0.50mm²+1*0.75mm²+TPU | 8.2 | 124.03 |
| TSW0722 | 6*0.75mm²+1*1.00mm²+TPU | 8.8 | 150.59 |
| TSW0723 | 6*1.00mm²+1*1.50mm²+TPU | 9.8 | 195.67 |
| TSW0724 | 6*1.50mm²+1*2.50mm²+TPU | 10.8 | 261.09 |
| TSW0725 | 6*2.50mm²+1*4.00mm²+TPU | 13.2 | 396.12 |
| TSW0726 | 6*0.50mm²+1*1.00mm²+TPU | 8.5 | 132.97 |
| TSW0727 | 6*0.75mm²+1*1.50mm²+TPU | 9.2 | 164.01 |
| TSW0728 | 6*1.00mm²+1*2.50mm²+TPU | 10.2 | 216.63 |
| TSW0729 | 6*1.50mm²+1*4.00mm²+TPU | 11.8 | 307.95 |
| TSW0730 | 5*0.50mm²+2*0.75mm²+TPU | 8.5 | 131.85 |
| TSW0731 | 5*0.75mm²+2*1.00mm²+TPU | 9.2 | 162.11 |
| TSW0732 | 5*1.00mm²+2*1.50mm²+TPU | 10.2 | 210.03 |
| TSW0733 | 5*1.50mm²+2*2.50mm²+TPU | 11.2 | 282.99 |
| TSW0734 | 5*2.50mm²+2*4.00mm²+TPU | 13.8 | 439.15 |
| TSW0735 | 5*0.50mm²+2*1.00mm²+TPU | 8.8 | 144.04 |
| TSW0736 | 5*0.75mm²+2*1.50mm²+TPU | 9.5 | 178.60 |
| TSW0737 | 5*1.00mm²+2*2.50mm²+TPU | 10.5 | 240.41 |
| TSW0738 | 5*1.50mm²+4*4.00mm²+TPU | 12.8 | 368.70 |
| TSW0741 | 1*12AWG+2*14AWG+4*16AWG+TPU | 15 | 294.01 |
| TSW0742 | 1*10AWG+2*12AWG+4*14AWG+TPU | 17.5 | 405.77 |
| TSW0743 | 1*8AWG+2*10AWG+4*12AWG+TPU | 19 | 497.56 |
| TSW0744 | 2*12AWG+1*14AWG+4*16AWG+TPU | 15.5 | 314.91 |
| TSW0745 | 2*10AWG+1*12AWG+4*14AWG+TPU | 18 | 430.92 |
| TSW0746 | 2*8AWG+1*10AWG+4*12AWG+TPU | 19.5 | 527.35 |
