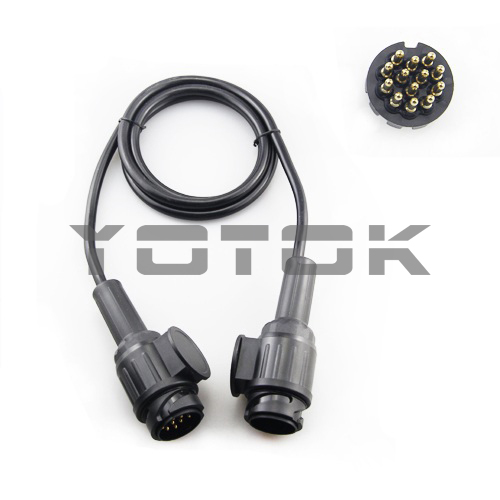

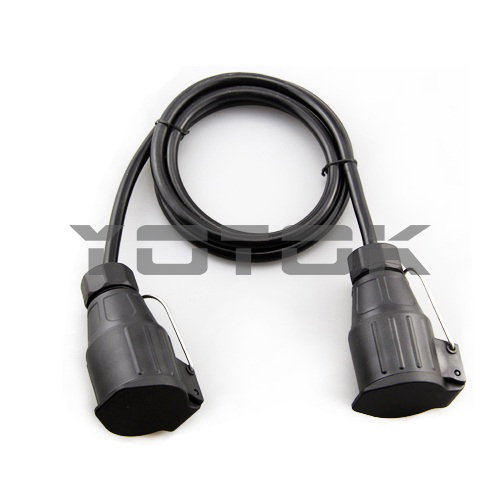

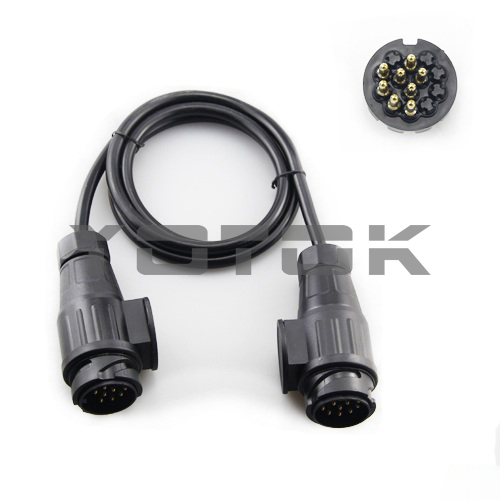

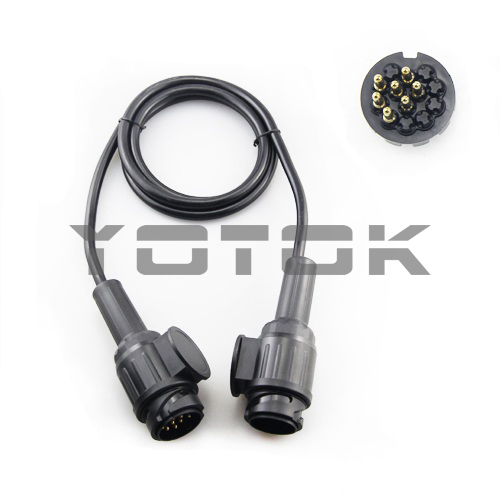

Trailer cable assembly 12v/13Pin
The specifications of the wires are shown in the table below.
| Model | Plug | Plug | Wire |
| YT2021 | YT01A-7 | YT01A-7 |
1、6*1.5mm²+1*2.5mm²+PVC/OD=10.5mm 2、6*1.0mm²+1*1.5mm²+PVC/OD=9.5mm 3、6*0.75mm²+1*1.0mm²+PVC/OD=8.5mm 4、6*0.5mm²+1*0.75mm²+PVC/OD=7.5mm 5、7*0.5mm²+PVC/OD=6.8mm |
| YT2022 | YT01B-7 | YT01B-7 | |
| YT2023 | YT01A-8 | YT01A-8 |
1、7*1.5mm²+1*2.5mm²+PVC/OD=11.5mm 2、7*1.0mm²+1*1.5mm²+PVC/OD=10.5mm 3、7*0.75mm²+1*1.0mm²+PVC/OD=9.5mm 4、7*0.5mm²+1*0.75mm²+PVC/OD=8.3mm 5、8*0.5mm²+PVC/OD=8.0mm |
| YT2024 | YT01B-8 | YT01B-8 | |
| YT2025 | YT01A | YT01A |
1、8*1.5mm²+5*2.5mm²+PVC/OD=15.8mm 2、8*1.0mm²+5*1.5mm²+PVC/OD=13.2mm 3、8*0.75mm²+5*1.0mm²+PVC/OD=12.0mm 4、8*0.5mm²+5*0.75mm²+PVC/OD=10.8mm 5、13*0.5mm²+PVC/OD=10.2mm |
| YT2026 | YT01B | YT01B | |
| YT2027 | YT01C | YT01C |
