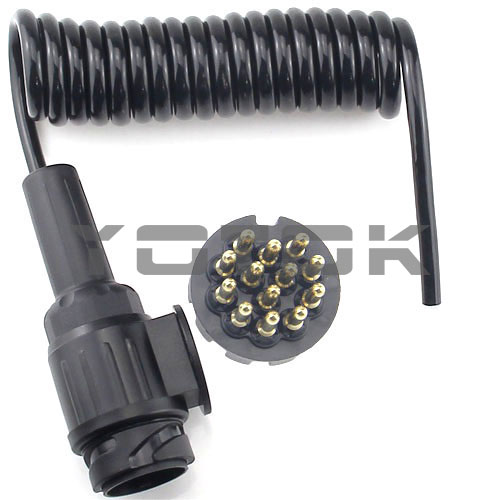

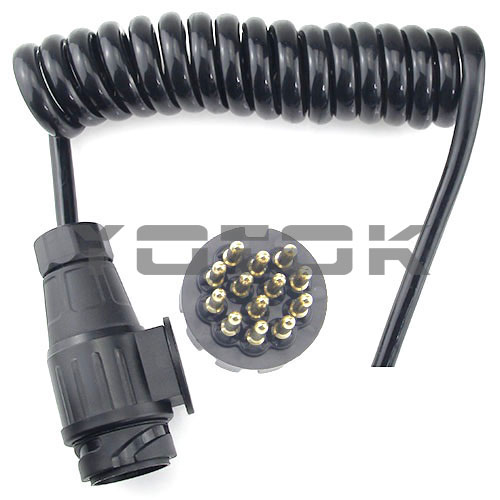

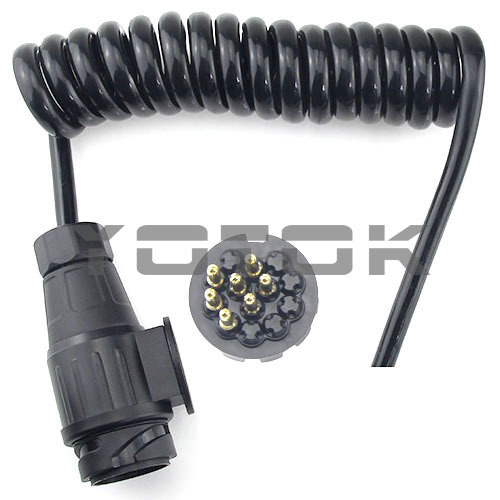

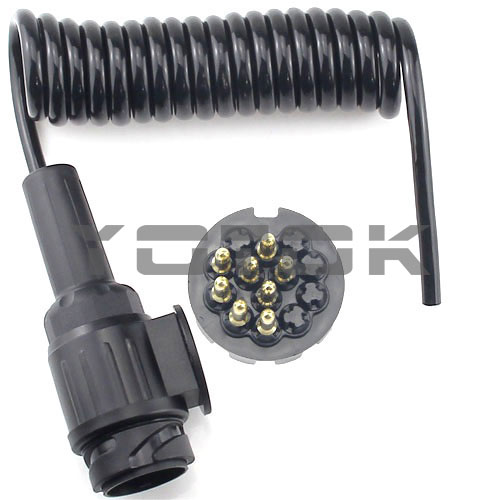

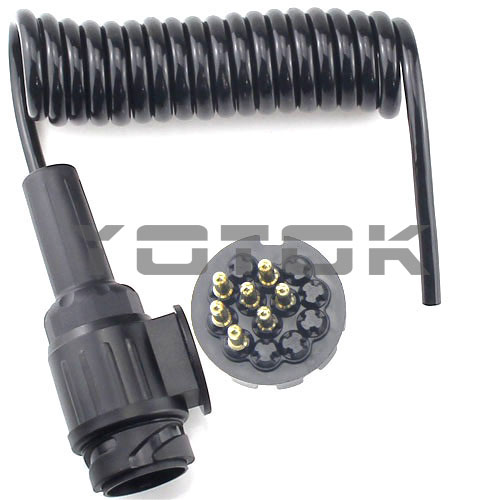

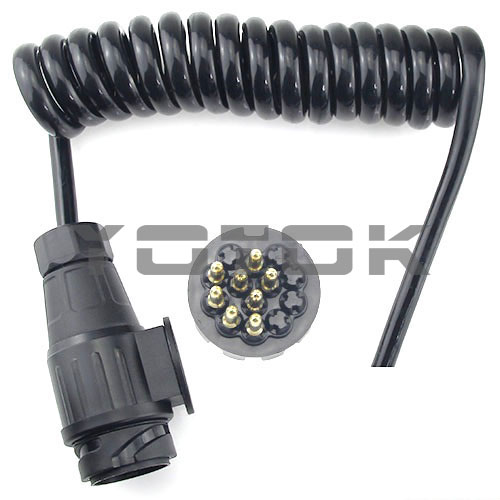

Single plug trailer spring cable assembly 12v/13Pin.
The specifications of the wires are shown in the table below.
| Model | Plug | Wire |
| YT1021 | YT01A-7 |
1、6*1.5mm²+1*2.5mm²+TPU/OD=11.5mm 2、6*1.0mm²+1*1.5mm²+TPU/OD=9.8mm 3、6*0.75mm²+1*1.0mm²+TPU/OD=9.0mm 4、6*0.5mm²+1*0.75mm²+TPU/OD=8.5mm 5、7*0.5mm²+TPU/OD=8.0mm |
| YT1022 | YT01B-7 | |
| YT1023 | YT01A-8 |
1、7*1.5mm²+1*2.5mm²+TPU/OD=12.5mm 2、7*1.0mm²+1*1.5mm²+TPU/OD=11.5mm 3、7*0.75mm²+1*1.0mm²+TPU/OD=10.5mm 4、7*0.5mm²+1*0.75mm²+TPU/OD=9.5mm 5、8*0.5mm²+TPU/OD=8.5mm |
| YT1024 | YT01B-8 | |
| YT1025 | YT01A |
1、8*1.5mm²+5*2.5mm²+TPU/OD=15.8mm 2、8*1.0mm²+5*1.5mm²+TPU/OD=13.2mm 3、8*0.75mm²+5*1.0mm²+TPU/OD=12.0mm 4、8*0.5mm²+5*0.75mm²+TPU/OD=10.8mm 5、13*0.5mm²+TPU/OD=10.2mm |
| YT1026 | YT01B | |
| YT1027 | YT01C |
